18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower

100
MOQ
$99-120
preço
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Corrente classificada: 10-200
Tensão nominal: 10-220
Tratamento de superfície: Galvanização a quente
Tolerância de dimensão: + - 2%
Força de rendimento mínimo: MPa 355
Resistência à tração mínima: MPa 490
Resistência à tração máxima: mpa 620
Comprimento pela seção: Dentro de 14m
Grossura: 1 mm a 30 mm
Alcance de potência: 10 KV ~ 550 KV
Carga de projeto: 300 ~ 1000 kg
Velocidade do vento: 160 Km/Hour
Resistência ao terremoto: Categoria 8
Fator de segurança: 8
Capacidade de fabricação: 300 partes pelo dia
Destacar:

18m Steel Utility Power Pole

,

33kV Transmission Line Tower

,

Q235 Material Electrical Power Pole

Informação básica
Lugar de origem: Jiangsu, China
Marca: MilkyWay
Número do modelo: Pólos elétricos de aço, pólo elétrico
Condições de Pagamento e Envio
Descrição de produto
18m Steel Utility Power Poles for 33kV Transmission Line Tower
High-quality steel power poles made from Q235, Q345, and Q420 materials, designed for 33kV transmission lines with superior durability and performance.
Product Specifications
Type Octagonal NGCP 69KV Galvanized electric steel power pole
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, polygonal or conical
Material Q345B/A572 (minimum yield strength ≥345n/mm²), Q235B/A36 (minimum yield strength ≥235n/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Power Range 10KV ~550KV
Safety Factor 8 for conducting wire, 8 for grounding wire
Design Load 300~1000Kg applied 50cm from top pole
Surface Treatment Hot dip galvanized (ASTM A 123), color polyester powder, or client-specified standard
Wind Speed Rating 160 Km/Hour (30 m/s)
Seismic Rating Earthquake resistant to 8 grade
Standard ISO 9001
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 0 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 1
Production Process
As a BV, ISO, SGS approved supplier in China, we have more than 20 years experience producing and exporting steel poles. We guarantee the quality of our poles, which are made from qualified materials by professional workers using advanced equipment.
Our production process includes:
  • Raw material testing
  • Cutting
  • Molding or bending
  • Welding (longitudinal)
  • Dimension verification
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburring
  • Galvanization or powder coating/painting
  • Recalibration
  • Threading
  • Packaging
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 2 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 3
Material Quality Assurance
All materials are purchased from reputable mill factories to ensure quality. A mill certificate with stamp and signature is required before unloading materials at our factory. All materials undergo chemical and physical analysis before production to verify strength and composition meet requirements.
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 4 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 5
Certifications
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 6
Project Images
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 7 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 8
Ordering Information
  • Price Term: EXW, FOB, CFR or CIF
  • MOQ: 1 set for customized orders
  • Payment: 30% T/T deposit, balance before shipment
  • Delivery Time: 10 workdays after deposit
  • Warranty: 30 years
  • Surface Treatment: Hot dip galvanization
Our Services
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 9
Pre-Sales Service
  • Inquiry and consulting support
  • Response within 24 working hours
  • Factory visits available
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 10
After-Sales Service
  • Installation training
  • Inspection reports and mill certificates provided
  • Tensile test documentation

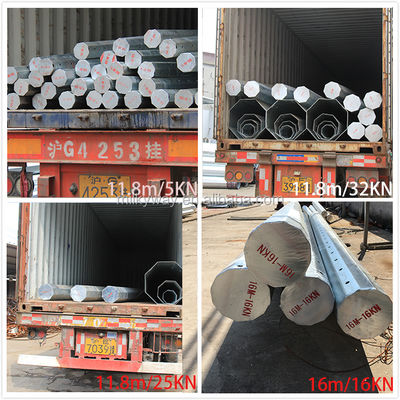

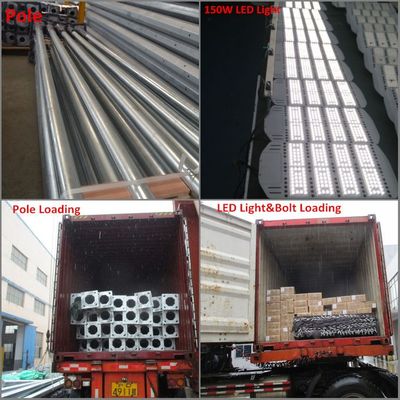

Packaging & Delivery
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 11 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 12
Packaging Type Quantity
40&45FT Electric poles for Philippine Market 26 Tons/40HQ Containers
35FT Electric poles for Philippine Market 26 Tons/40HQ Containers
Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, East China, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and lighting for streets, roads, squares, and stadiums.
With extensive export experience since our first overseas order to Pakistan in 1991, our products have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 13
