Name: 22m Steel Power Pole for Outside Electrical Distribution Line with Q345 Steel Material and Pure Polyester Powder Coating
Brand: Jiangsu milky way steel poles co.,ltd
SKU: 16M 800DAN 1250DAN 1600DAN IP65 Classe de aço Polo de energia de aço
Price: 500.00 USD
Availability: InStock

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Tolerância da dimensão: + - 2%

Resistência ao vento: 3 a 500 km/h

Material: GR50 GR65 S500 S355

Altura: 69KV 16M

Soldadura: Soldadura confirma com padrão de soldadura internacional de CWB

Revestimento em pó: Pintura em pó de poliéster puro, cor opcional

Projeto: contra a categoria 8 de terremoto

Nome do produto: 16M 800DAN 1250DAN 1600DAN IP65 Classe de aço Polo de energia de aço

Informação básica

Lugar de origem: CHINA

Marca: Milky Way

Certificação: ISO//BV

Número do modelo: 16M 800DAN 1250DAN 1600DAN IP65 Classe de aço Polo de energia de aço

Condições de Pagamento e Envio

Detalhes da embalagem: Conforme solicitação do cliente

Tempo de entrega: geralmente 2 semanas após a confirmação

Termos de pagamento: T/T.

Habilidade da fonte: 300 partes do polo pelo dia

Galeria

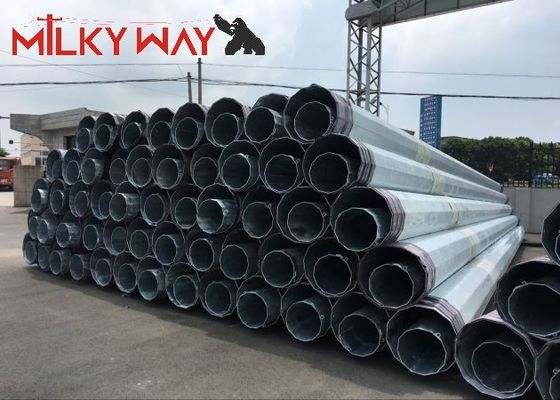

22m Steel Power Pole for Outside Electrical Distribution Line with Q345 Steel Material and Pure Polyester Powder Coating

Descrição de produto

Product Description

22m Power Transmission Poles For Outside Electrical Distribution Line

Material:	high quality Q345 hot rolled steel
Mounting Height:	3-30m or according to the requirements of customers
Shape of pole:	Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Brackets:	Single or double brackets are in the shape and dimension as per customers requirement
Base plate:	Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
Groung mounted:	The length buried underground as per customers requirement
Galvanizing:	Hot dip galvanization with thickness of 80-100µm average
Powder coating:	Pure polyester powder painting, color is optional

22m Steel Power Pole for Outside Electrical Distribution Line with Q345 Steel Material and Pure Polyester Powder Coating 0

Specification:

1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc

2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.

3) Finish: Hot-dip galvanized in accordance with ASTM A123.

4) Pole Height: All available

5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)

7) Surface hot-dip-galvanized & painting

8) Resistant: against earthquake of 8.8 grade. Wind speed as design.

9) Quality Standard: ISO9001:2000,AAA credit rating

10) Easy install and maintenance

11) Packages: Normally covered by sack or as customer’s requirement.

12) Voltage:10-550KV

22m Steel Power Pole for Outside Electrical Distribution Line with Q345 Steel Material and Pure Polyester Powder Coating 1

Features & Advantage

1 High intensity, high resistance of shock or vibration
2 High efficiency up to 85%, 110lm/watt
3 Low illumination attenuation, 3% - 5% degradation/1kh
4 Long lifespan: 50,000hrs, 25 times more than normal energy-saving lamps.
5 Excellent heat dispersion, and low power consumption.
6 Easy installation, free maintanence.
7 High Power Factor: 0.85
8 No UV radiation
9 No mercury or other inorganics
10 Constant current to guarantee long life

Our Services

1. Quick reply within 24 hours.
2. Convenient and smooth communication.
3. Detailed and professional specifications and guidances of products.
4. Lighting solutions by professional technician.
5. Fast &Cheap Delivery.
6. Free Light study.
7. Various Certificates.
8. Product Update.
9. OEM&ODM available.

22m Steel Power Pole for Outside Electrical Distribution Line with Q345 Steel Material and Pure Polyester Powder Coating 2

Our Company

Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.
